X – UX Grids

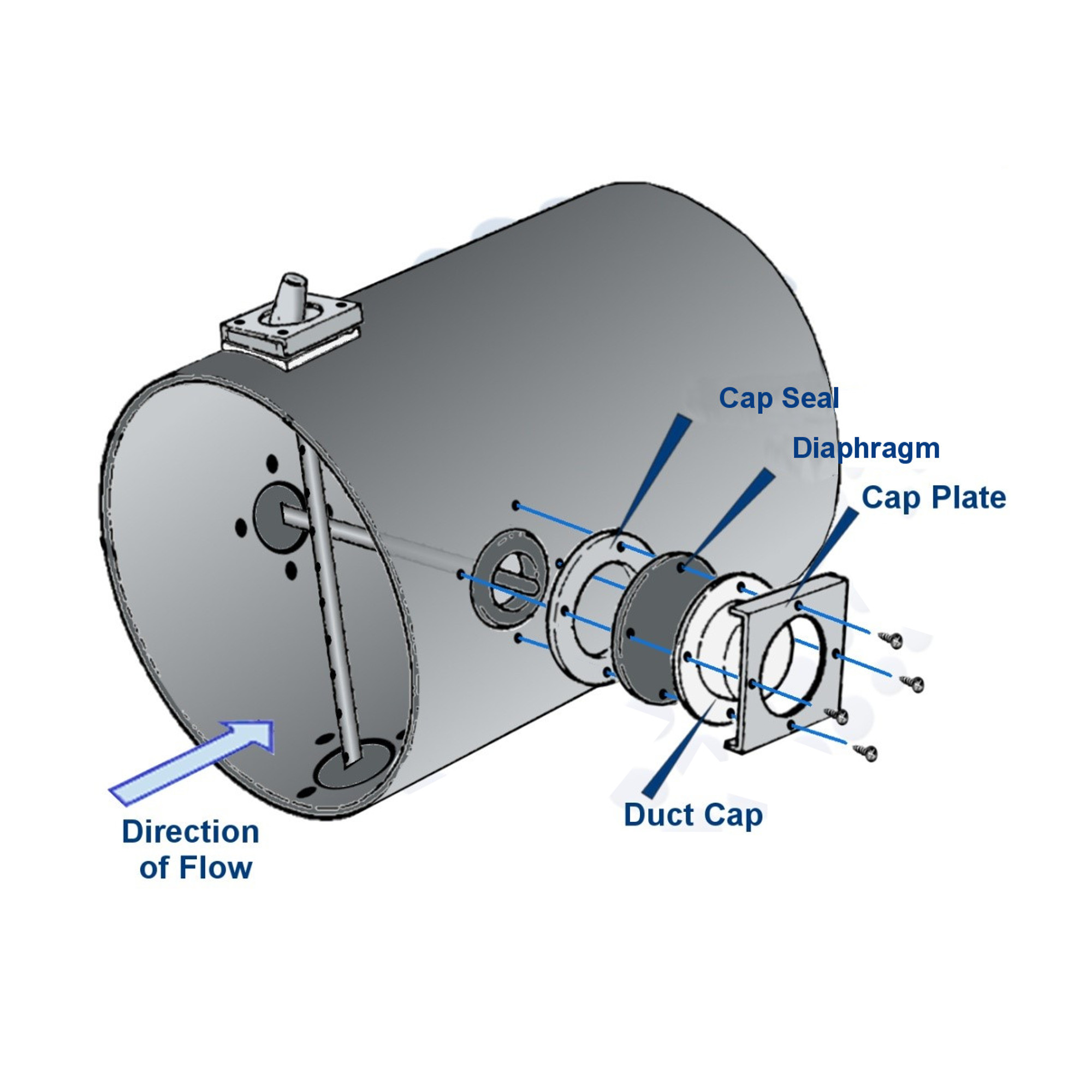

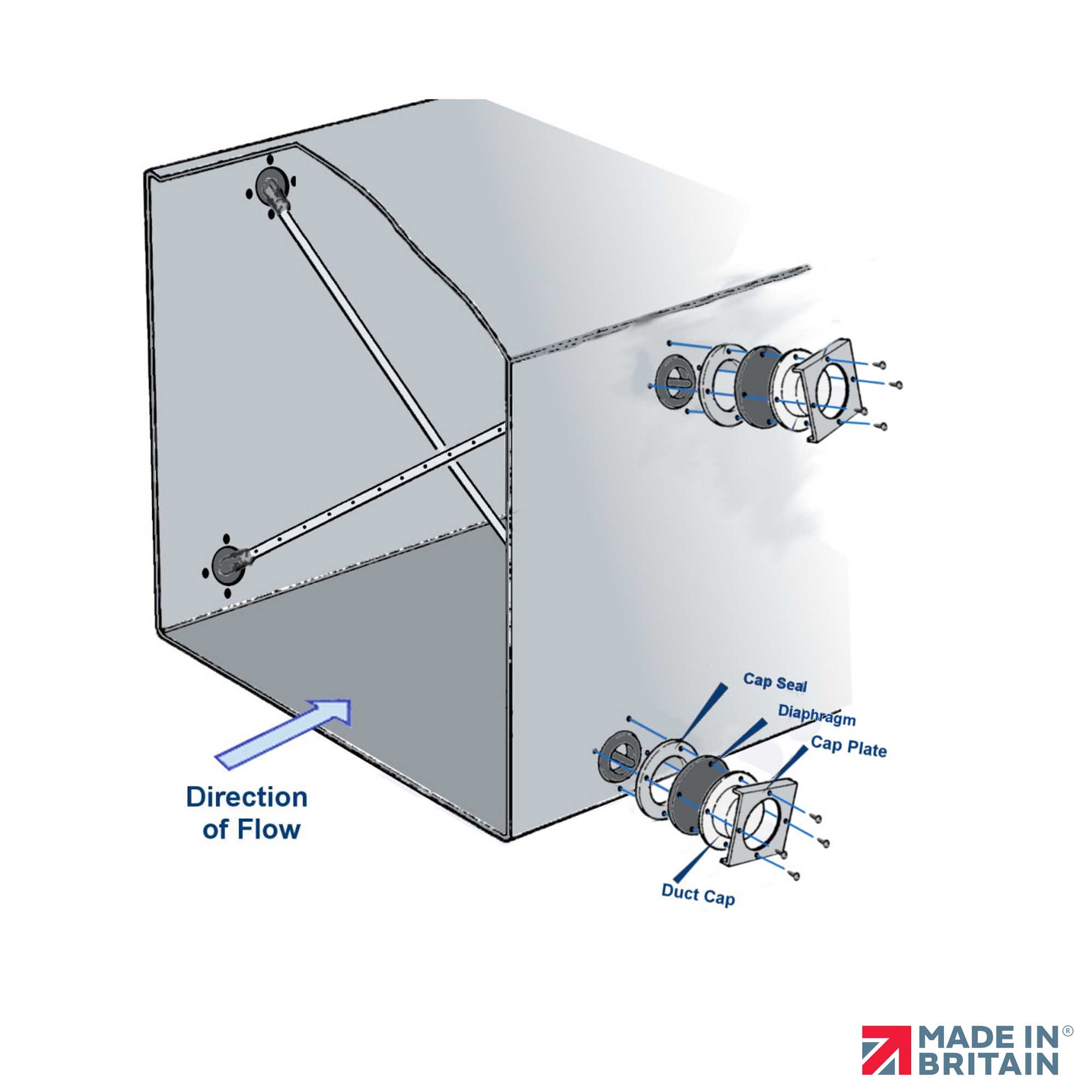

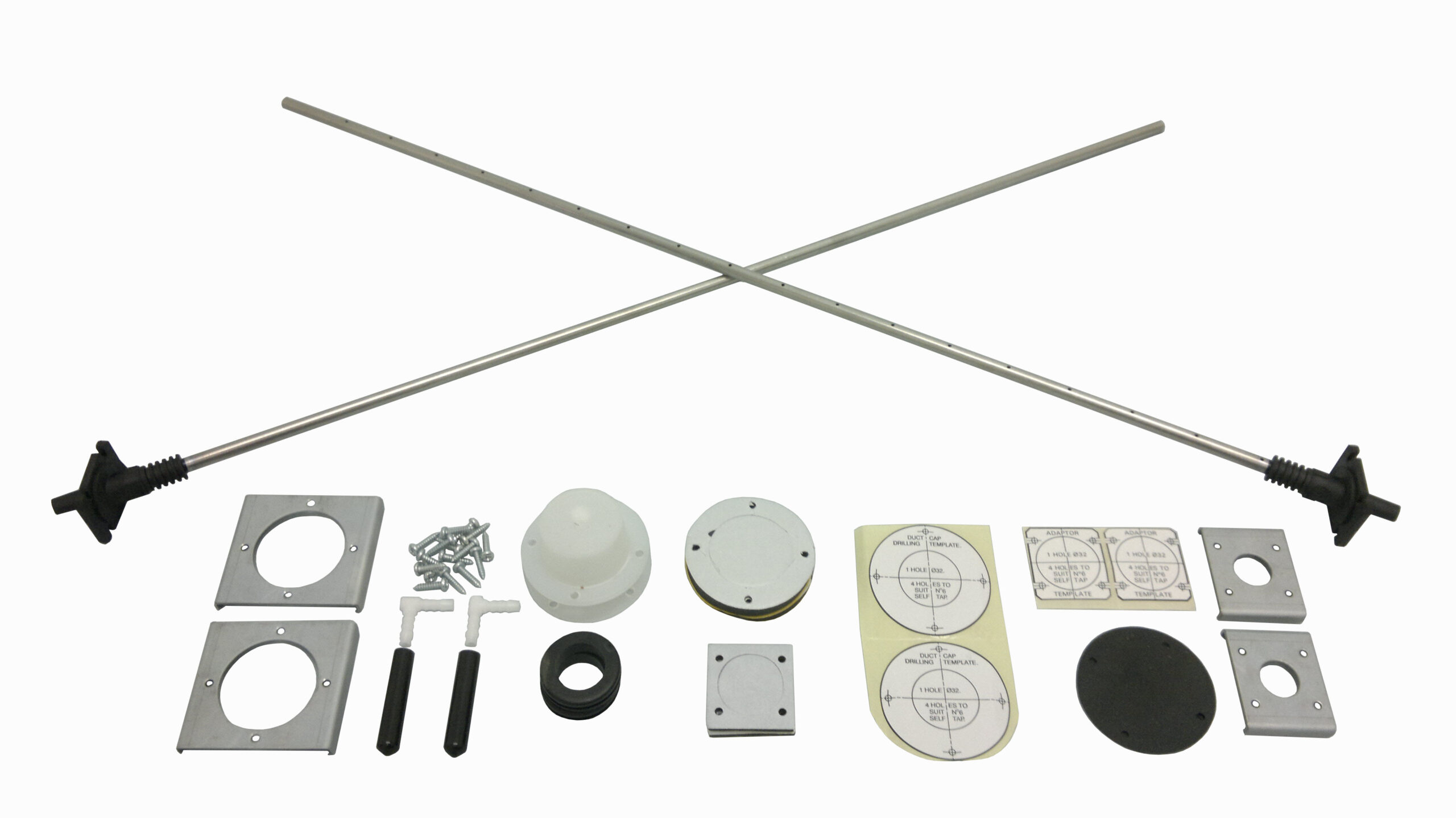

X-Grids consist of two tubes mounted diagonally through the cross section of a duct and are easy to install and maintain.

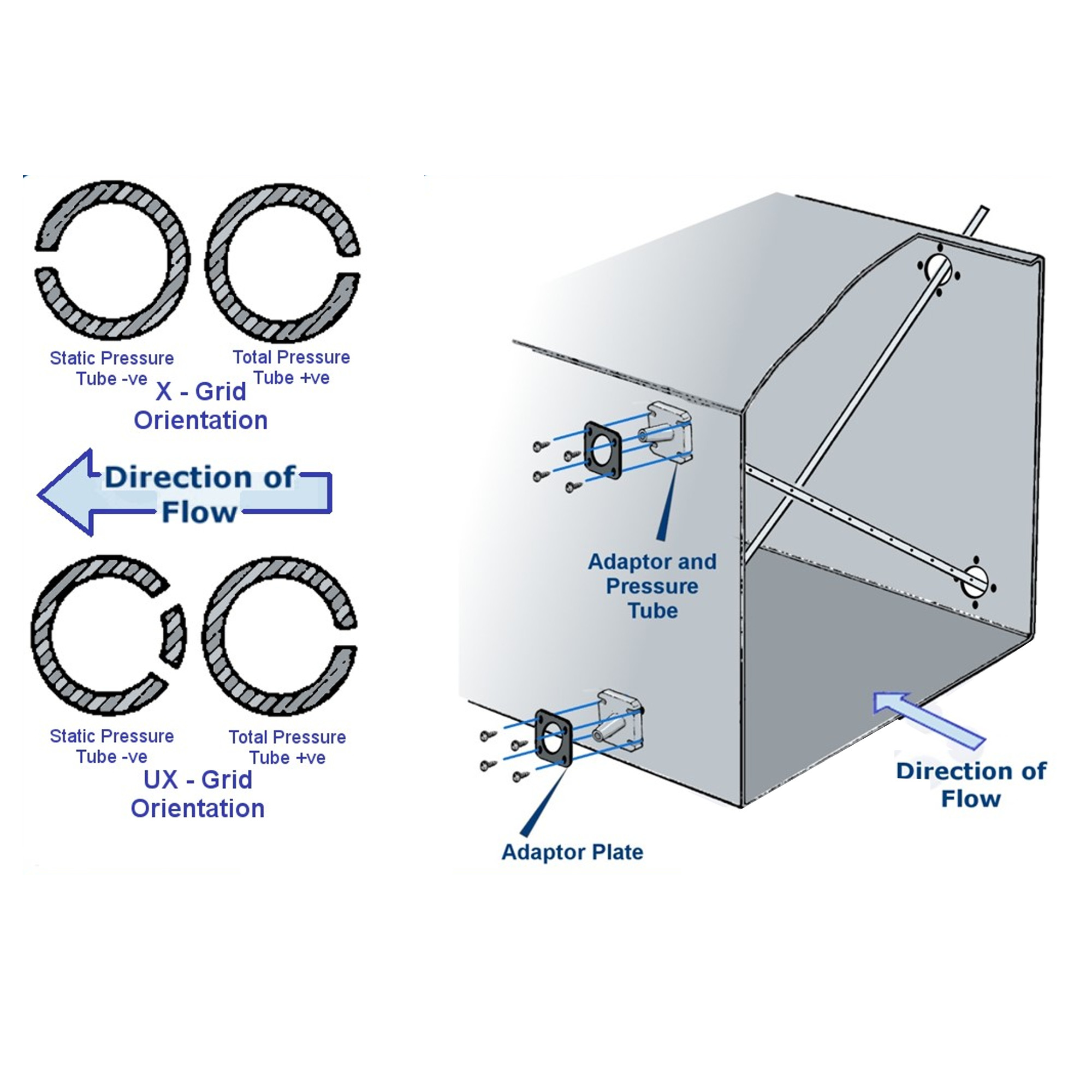

X-Grids consist of two tubes mounted diagonally through the cross section of a duct and are easy to install and maintain. The holes in the first tube face upstream (Total Pressure), whilst those in the second tube face downstream (Sub-Static Pressure). The holes in the second tube of the UX-Grids also face forward but at an included angle. In both cases, these tubes generate an averaged signal to generate a differential pressure signal that directly relates to volume flow. Standard Performance Data is available.
Key Features Of Our X & UX Grids
8mm Dia Tube (MX8)
16mm Dia Tube (MX16)
Fixed Length Allows On-Site Modification to suit Duct Size.
Economical Alternative to Wilson Flowgrids.
Quick & Easy to Install.
Suitable for Most Duct Locations.
|Standard Sizes Available||ø8mm – up to 715mm diagonal & 680mm Dia.|
|ø16mm – up to 1534mm diagonal & 1510mm Dia.|
|Uncertainty of Flow Measurement||±5.0% (can be obtained)|
|Magnification Factor (M)||X-Grid – approx. 1.8|
|UX – Grid – approx. 1|
|Versions Available||Standard and High Temperature Systems|
|Temperature Range||Standard up to 80°C – High Temperature up to 850°C (680°C continuous)|
|Materials||Stainless steel Grade BS3605 321 S18 tube supplied as standard also PVC, Polyurethane, Acetal plastics & Neoprene rubber.|
|Special Systems||Polypropylene Systems for Harsh Chemical Environments|
|Extras Available||Bespoke systems manufactured to meet Customer specification|
