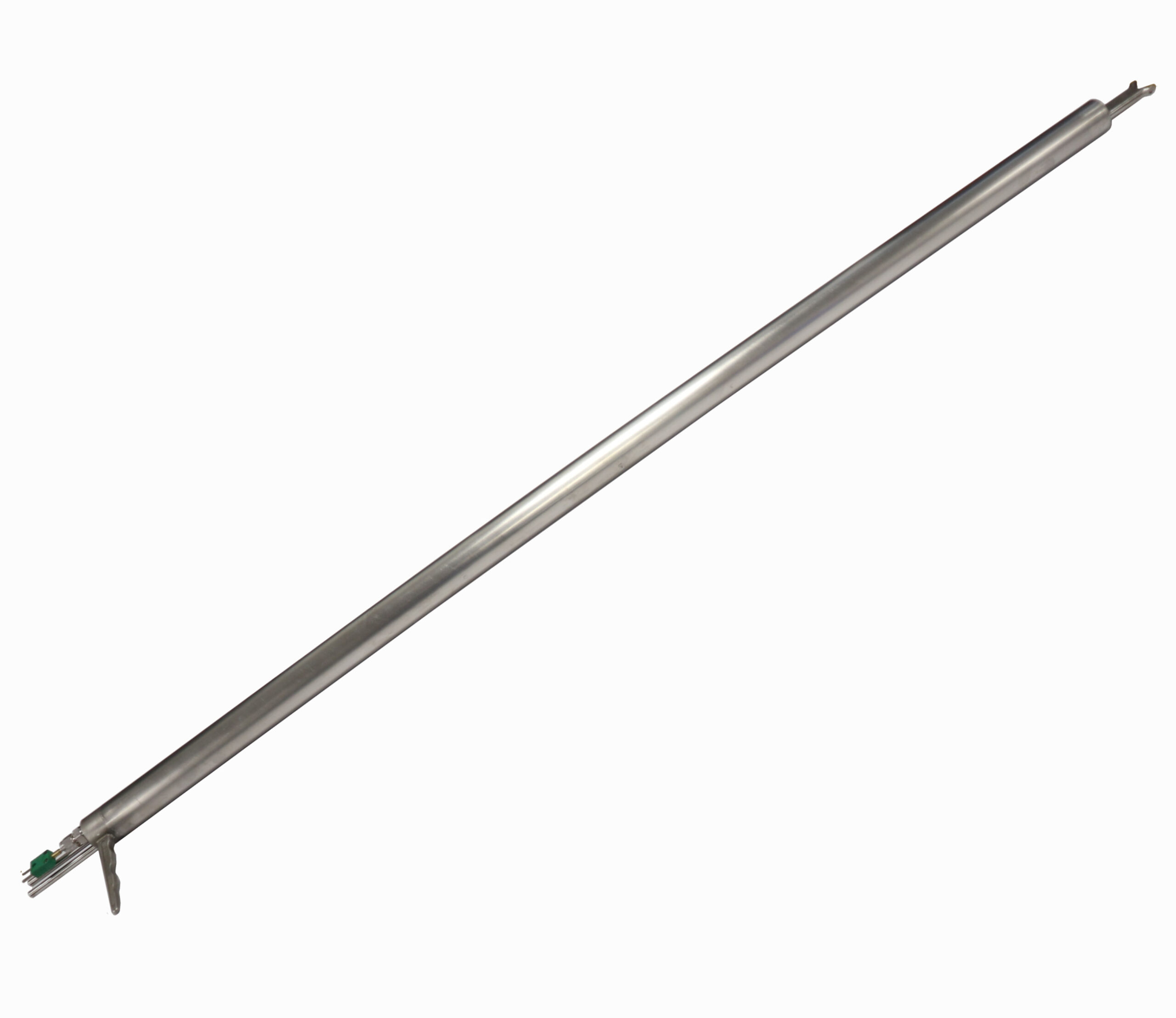

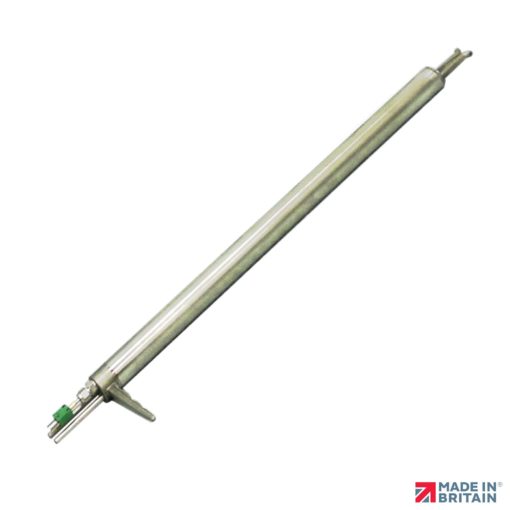

S-Type Pitot Tube

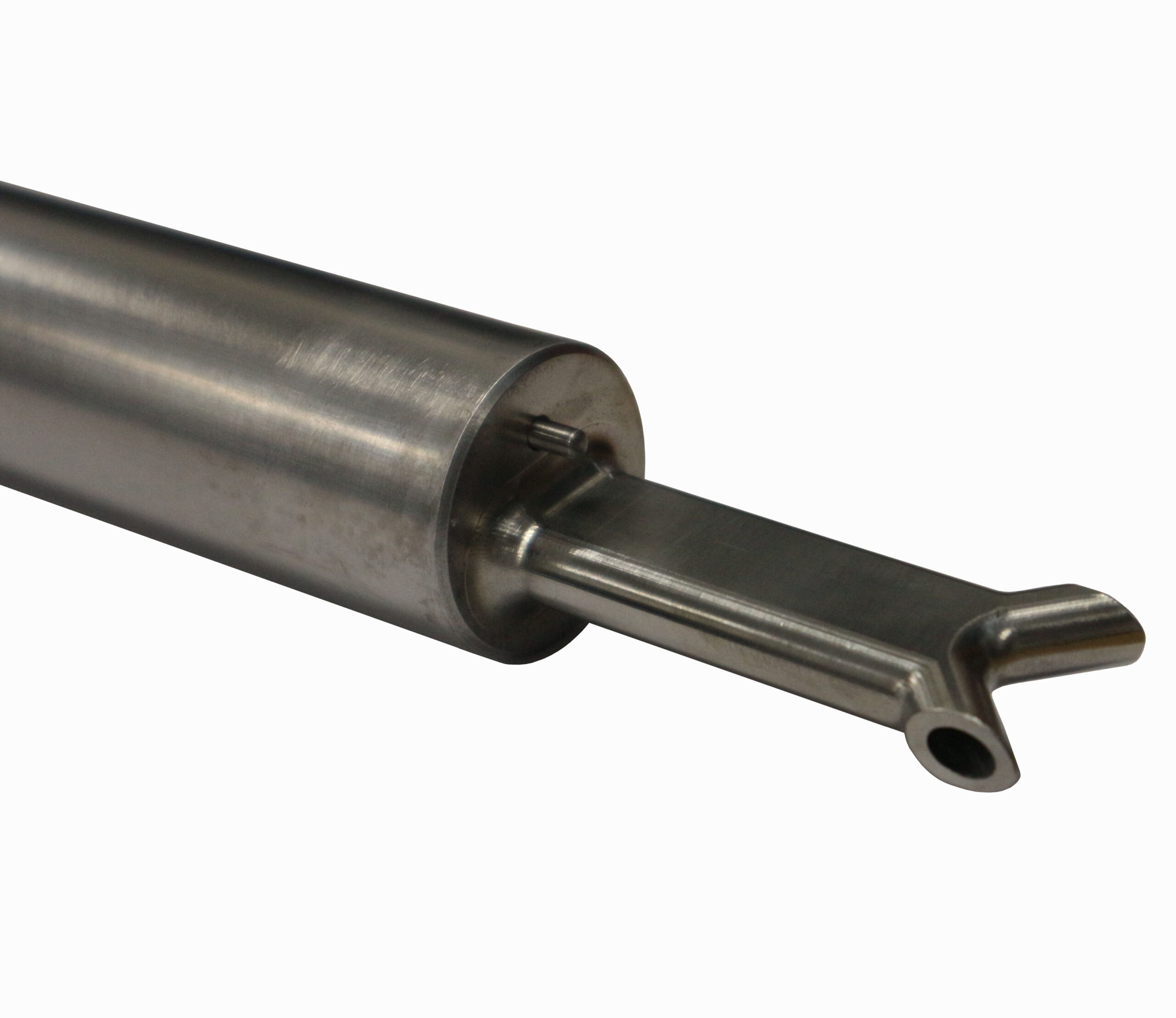

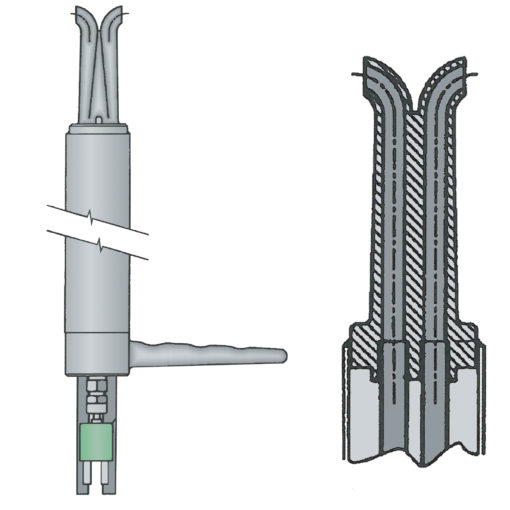

S-Type Pitot Tubes are used for the purpose of sensing air flow. They consist of a precision machined special nose, which is welded to stainless steel total and sub-static pressure tubes, enclosed in an overall stainless steel sheath.

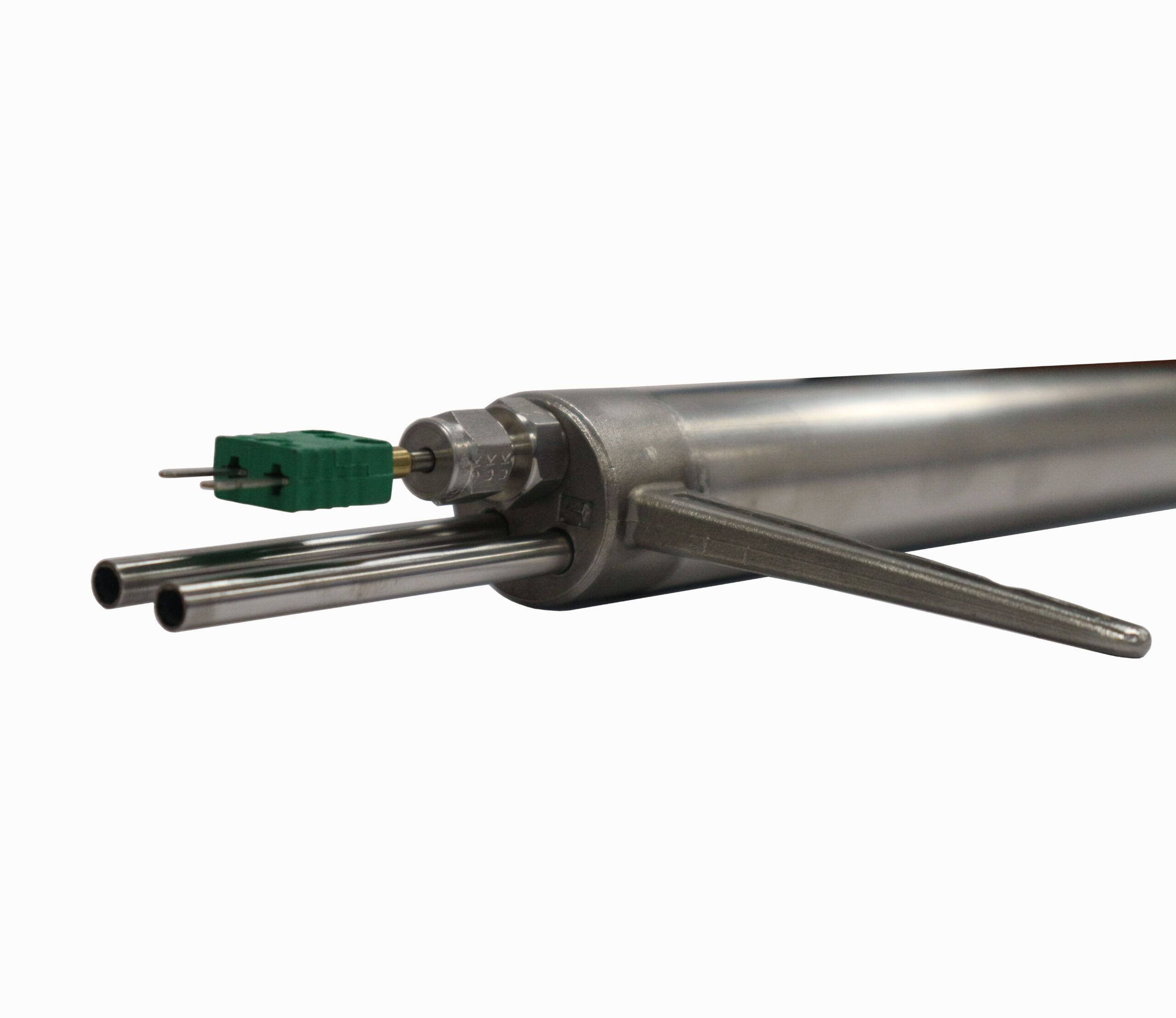

An S-Type Pitot Tube consist of a precision machined special nose, which is welded to stainless steel total and sub-static pressure tubes, enclosed in an overall stainless steel sheath. It is widely used in sampling applications where particulate levels are high as their relatively large sensing holes make them less prone to clogging than other Pitots. They only require a Ø35mm access hole, regardless of duct wall thickness and the integral thermocouple allows for simultaneous monitoring of duct air temperature and velocity with minimal disturbance.
|Complies with Standards||BS ISO 10780|
|Magnification Factor (M)||1.422 with an accuracy of +/- 5% of reading|
|Sizes Available||32mm diameters available in four standard length, 0.7m, 1.2m, 2.2m and 3.2m|
|Temperature Range||680°C Continuously & 800°C Intermittently|
|Materials||Fully Stainless Steel Construction|
|Special Functions||Only requires an access hole 35mm, regardless of duct wall thickness. Precision CnC machined head gives more predictable result than a fabricated head.|
– Velocity measurement
– Static pressure measurement
– Volume flow measurement
