PATON 500 Leakage Tester

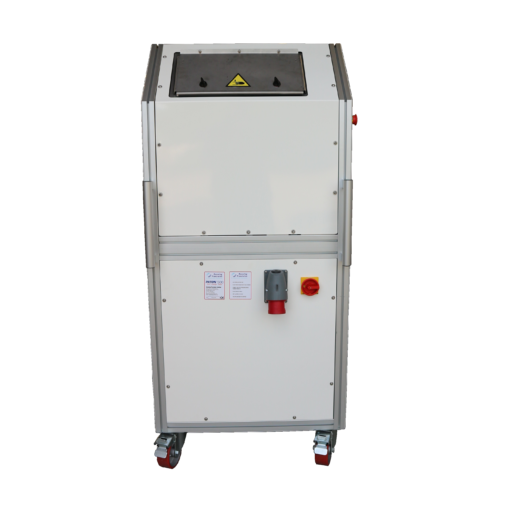

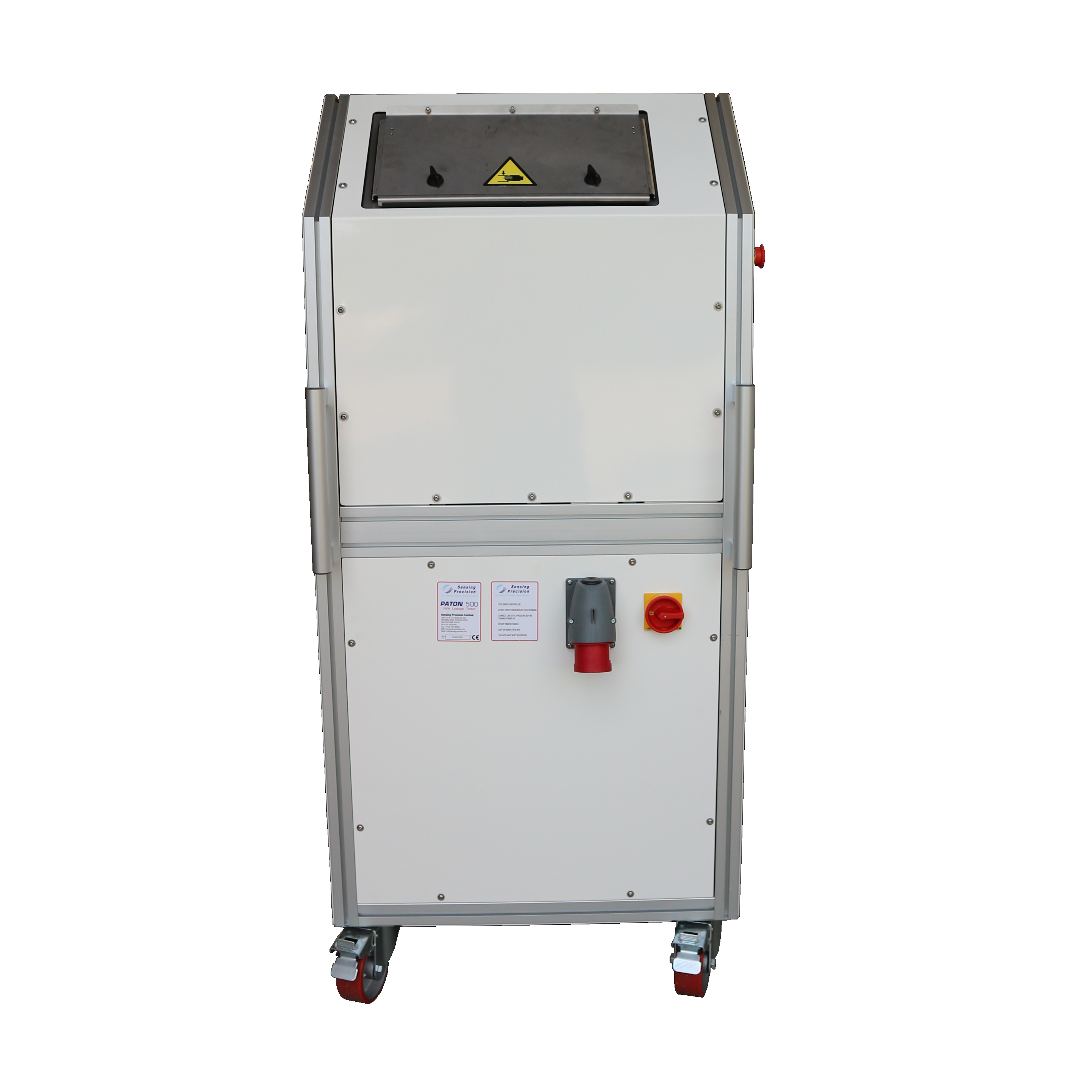

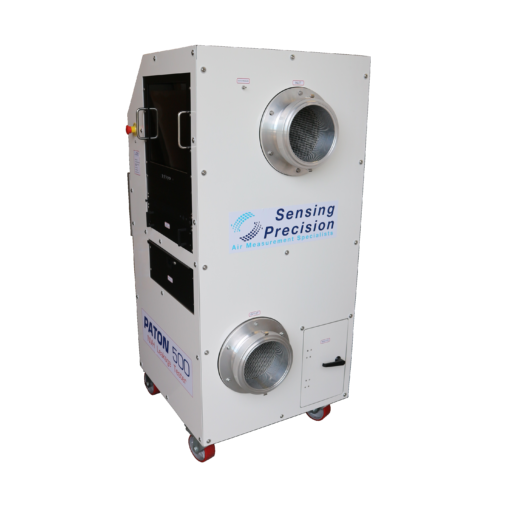

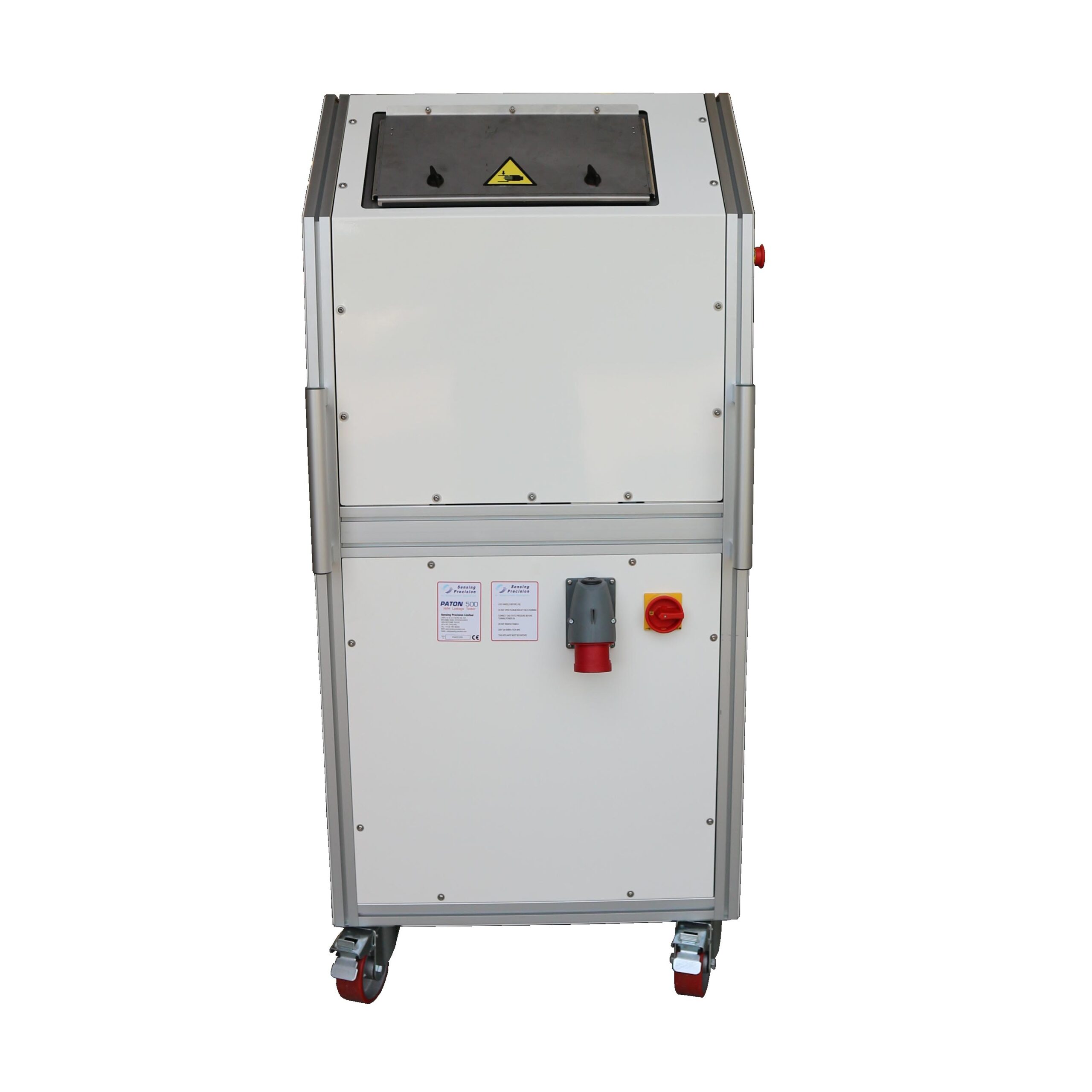

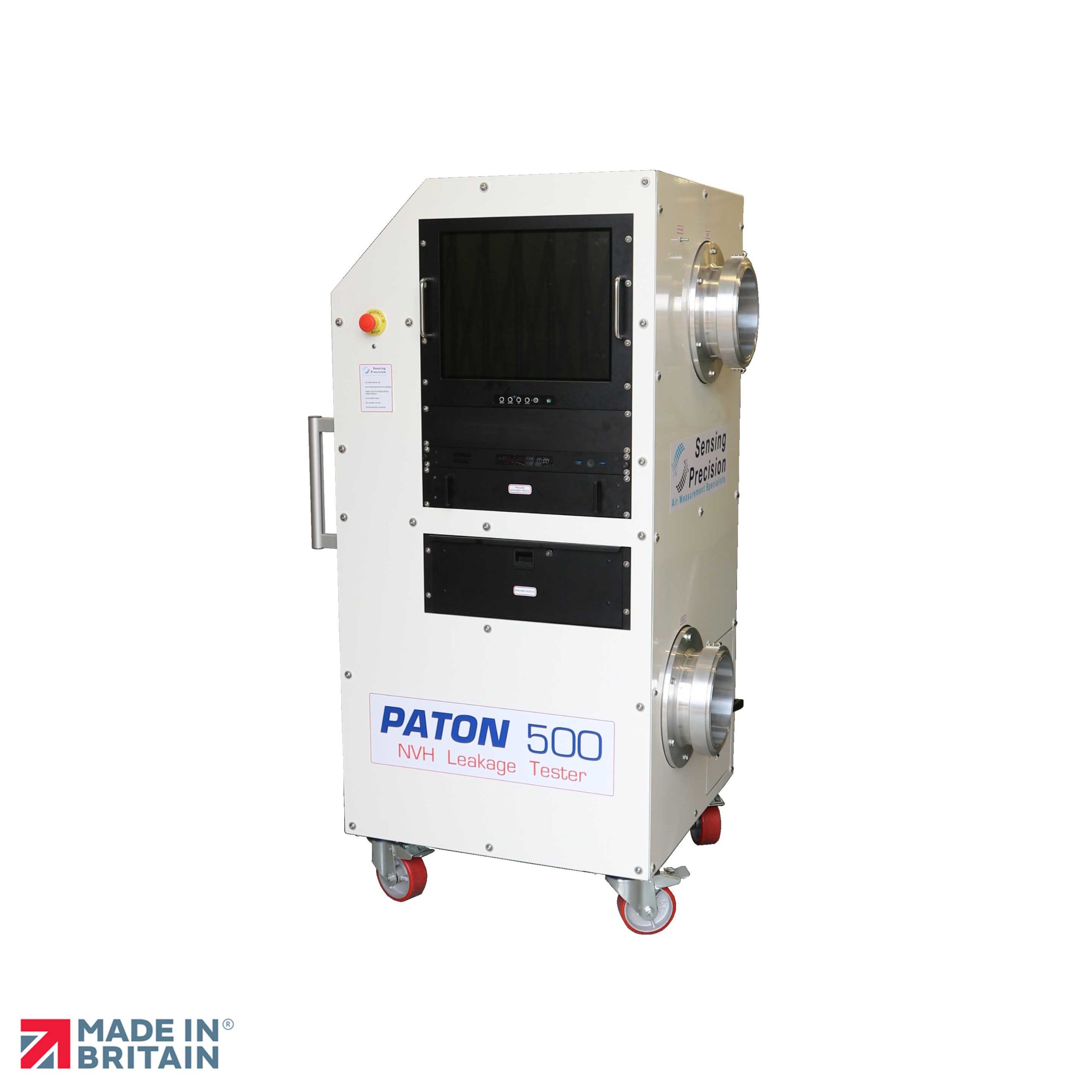

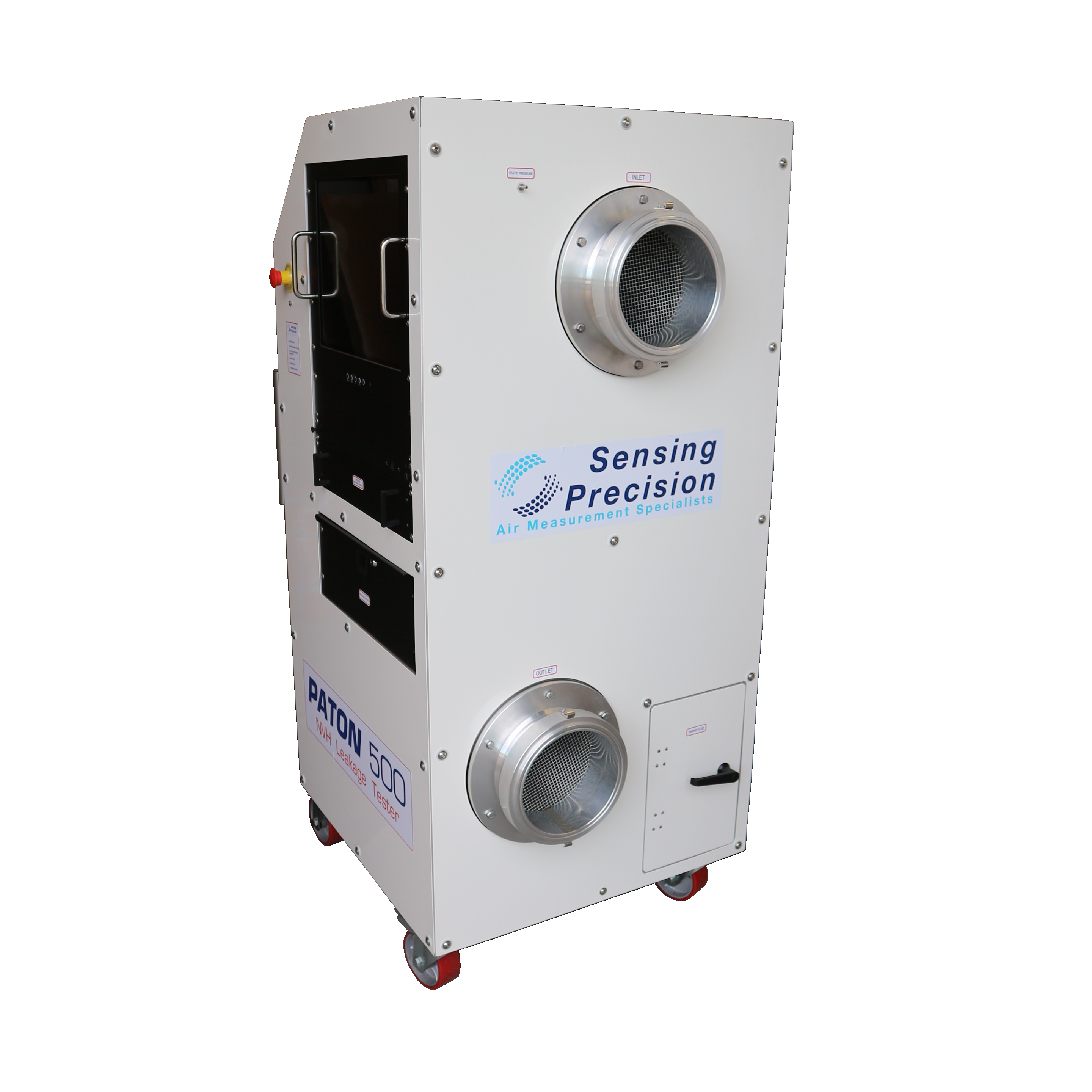

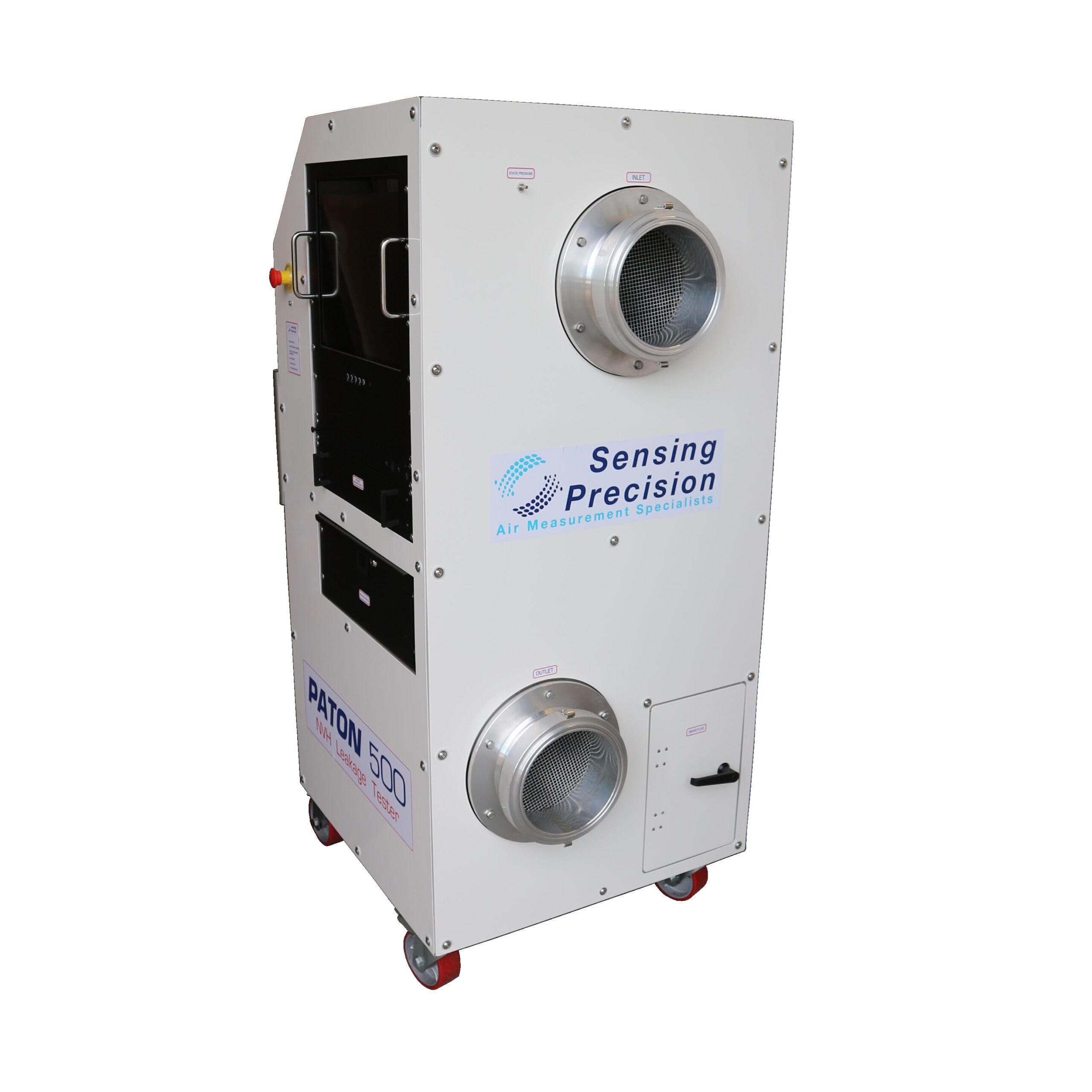

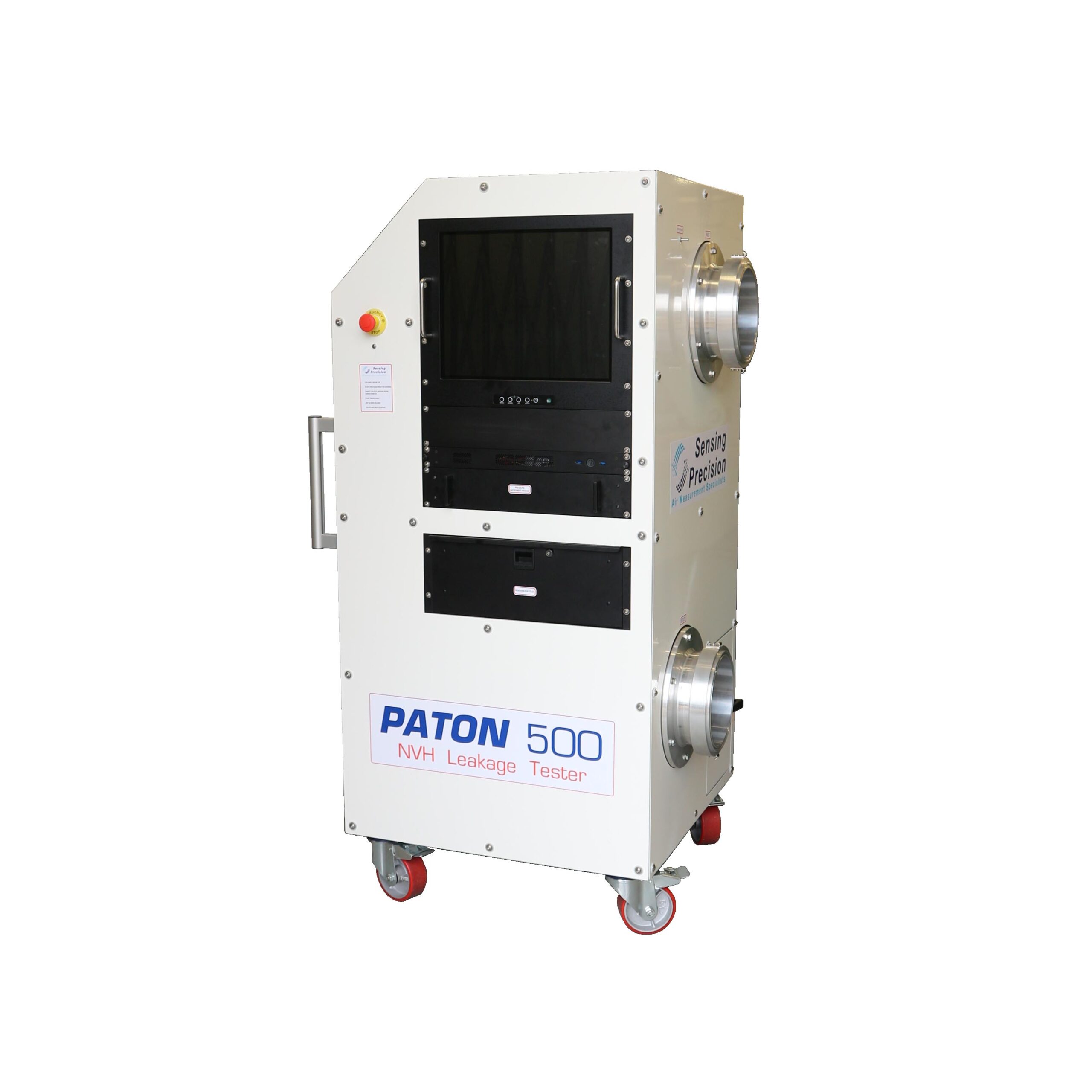

The PATON 500 Leakage Tester is designed to allow an engineer to test the leakage rate of a vehicles’ cabin. It is the extended-range machine in terms of performance and is ideal for NVH leakage testing most road vehicles including vans and minibuses.

The PATON 500 Leakage Tester is designed to allow an engineer to test the leakage rate of the cabin of larger vehicles such as vans and minibuses whilst still being able to test the smallest passenger vehicles. The PATON 500 Leakage Tester works by pressurizing and depressurizing the vehicle under test to a specified pressure, and measuring the air volume flow generated to produce a leakage rate, or equivalent body hole size.

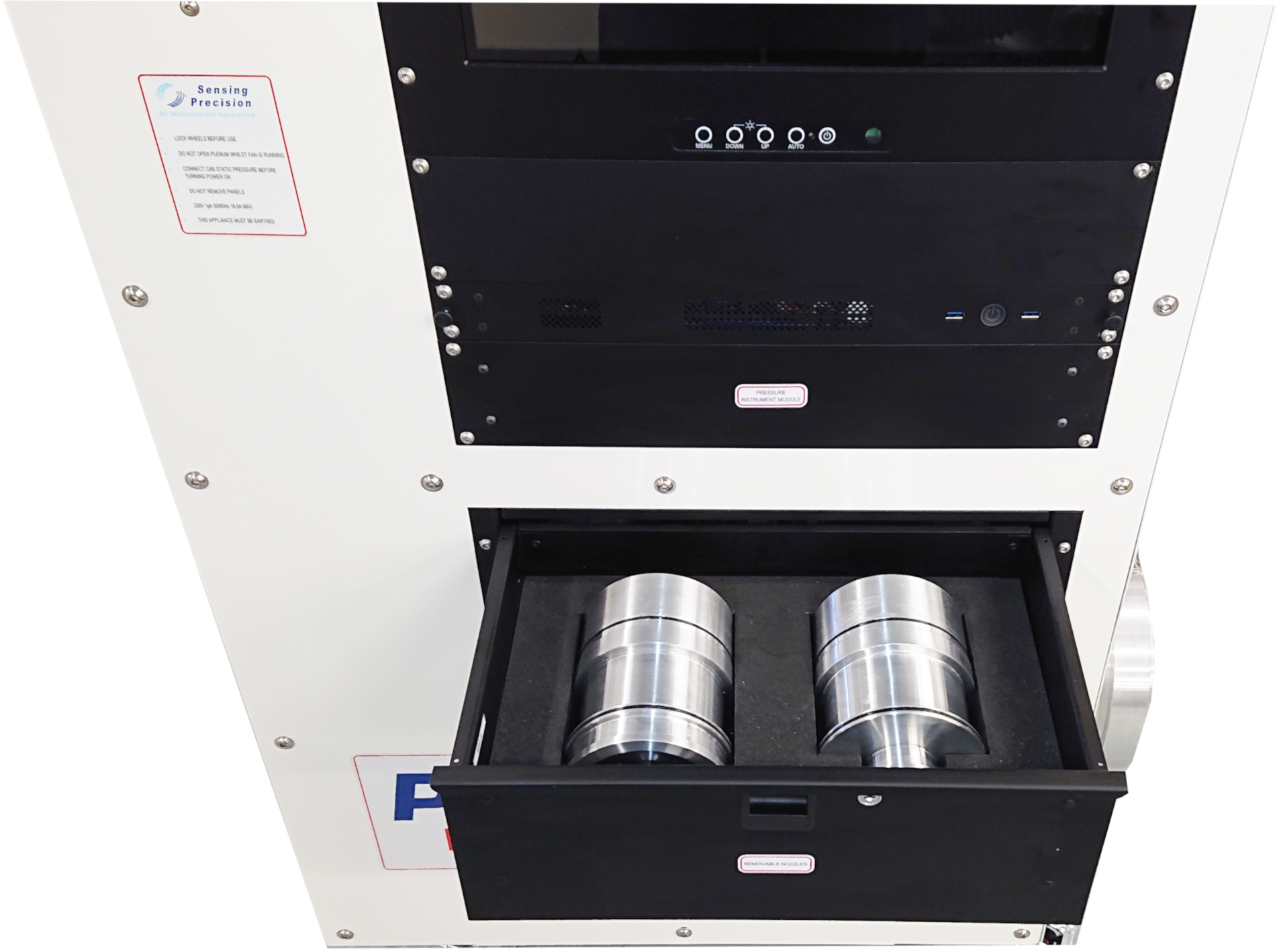

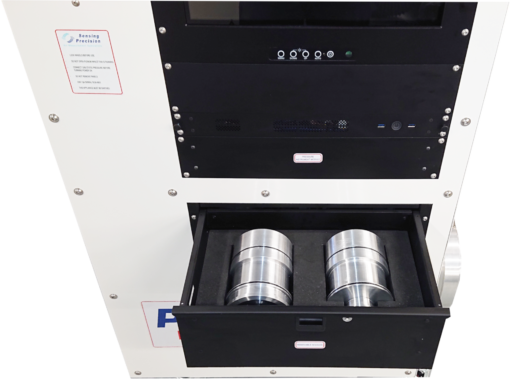

The PATON 500 is the extended mid range leakage tester that has been designed to meet 95% of NVH leakage testing requirements. It is equipped with a fan that is capable of achieving 500 L/s of airflow, and static pressures in excess of ±2500 Pa. The PATON 500 is also a primary measuring device using a set of precision machined conical inlet nozzles to provide impressive accuracy across the entire flow range down to 1 L/s. The PATON 500 is available with Windows control, an air heater and a smoke machine as standard. This provides the user with the ability to not only quantify the vehicles’ ability to seal but also identify areas requiring further improvement. Both models are compatible with the optional attenuators. These provide a comfortable and safe working environment without the need for hearing protection, even at full flow.

The PATON 350 is the mid-range NVH leakage tester designed to meet 90% of NVH leakage testing requirements. It is equipped with a fan that is capable of achieving 500 L/s of air flow, and static pressures in excess of ± 2500 Pa.

The Paton 500 includes a Touchscreen Windows PC control system, an air heater and a smoke machine.

PATON 500 Key Features

Touch Screen Windows PC control system
Temperature, Barometer and Humidity sensors
PID Closed Loop Control with the ability to create individual test profiles
Data saving direct to computer hard drive
Automatic variable sensor damping
Air Heater
Smoke Machine

General uncertainty of Volume flow measurement is ±2% of reading

Specification
Volume flow measurement 1-500 L/s.
Pressure Measurement ± 2500 Pa
typical duty points 276 L/s @ 2500Pa
478 L/s @ 2200Pa
502 L/s @ 600Pa
Pressure Measurement Accuracy ± 0.50% of reading +/- 1 digit
Volume Flow Accuracy ± 2% of reading ± 1 digit
Resolution 0.5 Pa
Sensor Damping Touchscreen PC Control System: Automatic
Power 3kW
Voltage Options 415V 3 Phase
Flexible Ducting: Size 5 meters long x 203mm Dia
Flexible Ducting: Weight 7kg
Overall Size 0.74m Wide x 0.85m Deep x 1.66m High

Overall Weight 360kg
